Dioxines (PCDD/PCDF)

Sampling of dioxins (PCDD/PCDF) and other organic micro-pollution according to the European Standard EN-1948.

Dioxine sampler

METLAB’s sampling system EVA Light Dioxin sampler is used for sampling dioxins (PCDD/PCDF) and other organic micro-pollutions according to the European Standard EN-1948.

  • Sampling flow rates up to 20 lpm
  • Filter holder for 1 pc 120 mm plane filter
  • Includes a cooled XAD 2 reservoir after the cooler
  • The condensate from the cooler passes with the sample gas through XAD 2 and thus does not need to be handled for analysis
  • Sampling consists of filter + XAD2 + rinsing fluids (acetone + toluene)
  • The central box contains condensation separator and condensation bottle as well as a drying tower with space for up to 2 kg of desiccant
  • Used together with EVA Light Gas Probe
CU-6-20D Centralenhet för dioxinprovtagning. Anpassningsbar för att även fungera för Stoftprovtagning.

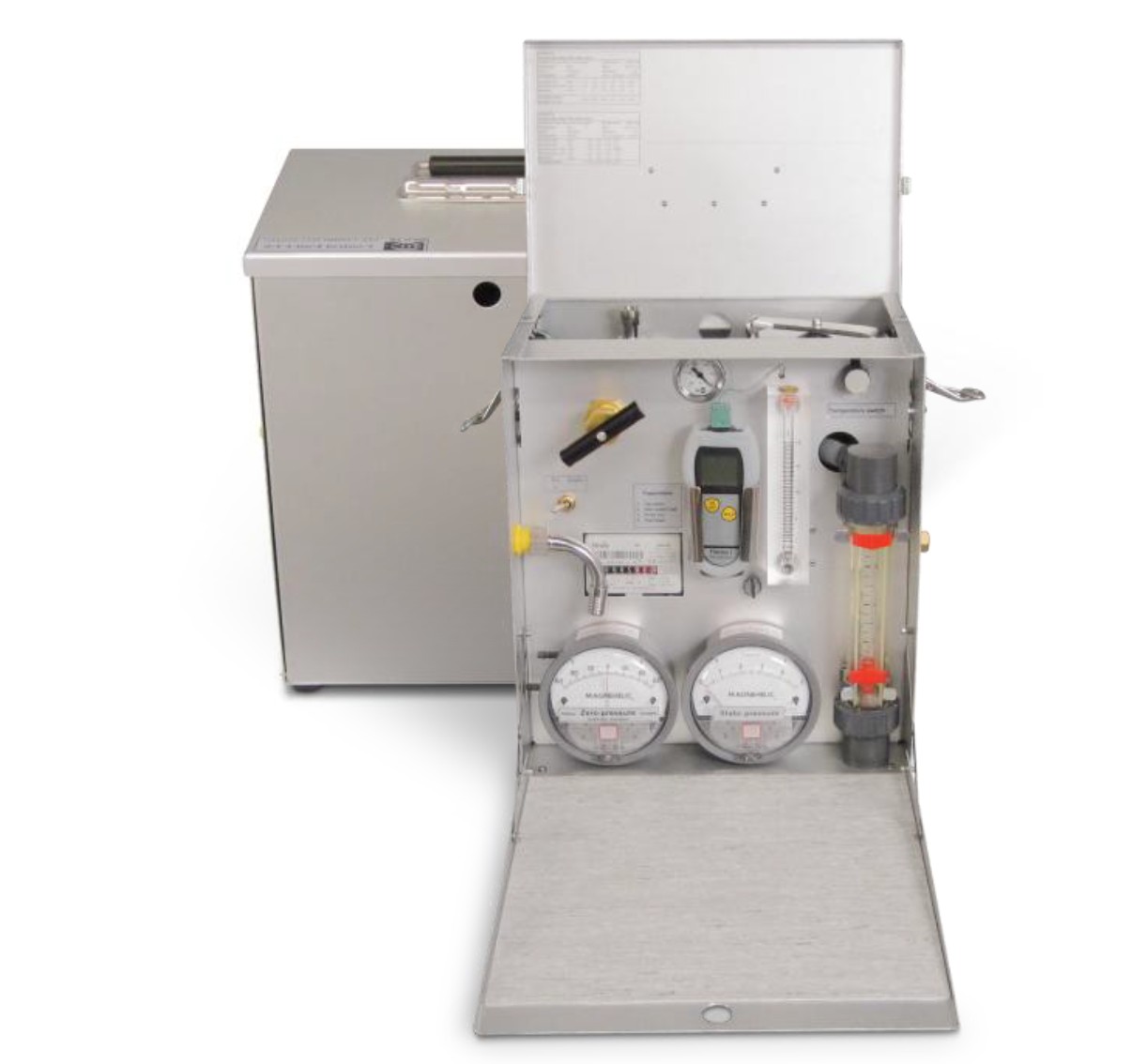

CU-6-20D Central unit for dioxin sampling. Adaptable to also work for Dust sampling.

Contact us for more information regarding the product

Galleri

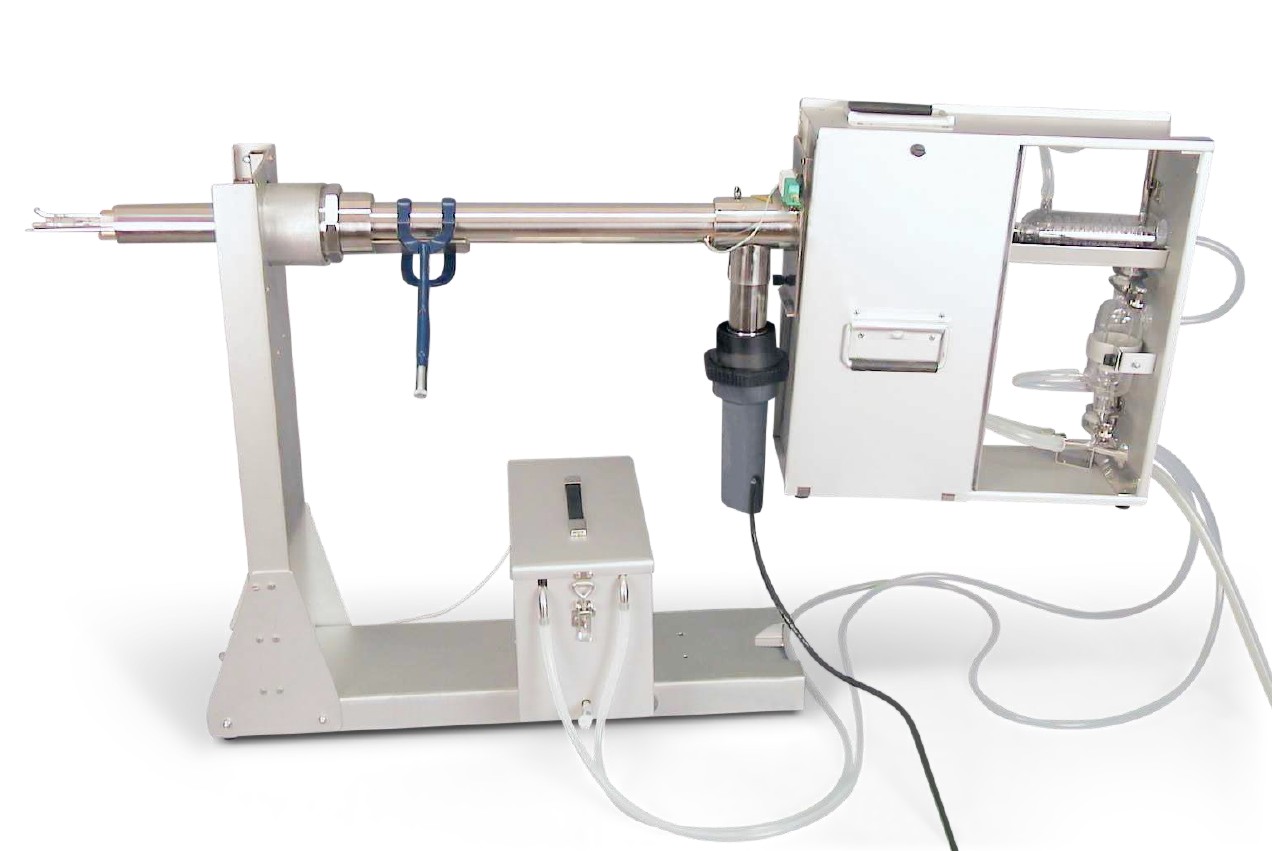

Dioxin probe with cabinet housing filter holder for 120mm flat filter and XAD2 ampoule

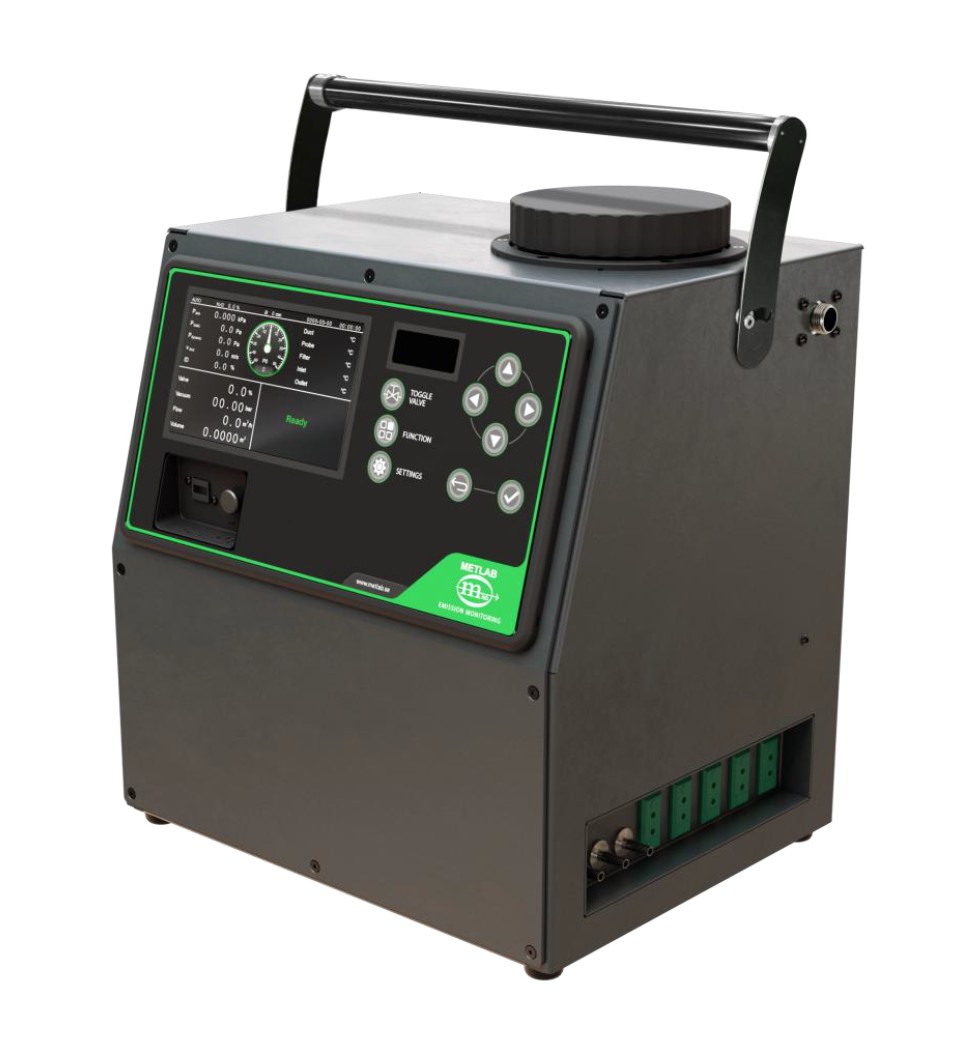

Pump unit for dioxin sampling
Bag with all necessary accessories for Dioxin sampling; tips in different sizes, filter holder, glass cooler, XAD2 ampoule, etc.

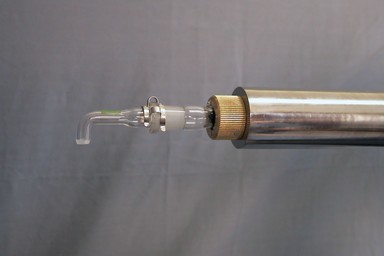

Probe tip in glass with parallel measurement of flow with S pitot tube and temperature (type K)
Tip for glass probe is available in several different sizes, which enables isokinetic sampling in a wide range of different gas flows.
